UGREEN M.2 NVMe/SATA SSD Enclosure 20Gbps
Wide SSD Compatibility

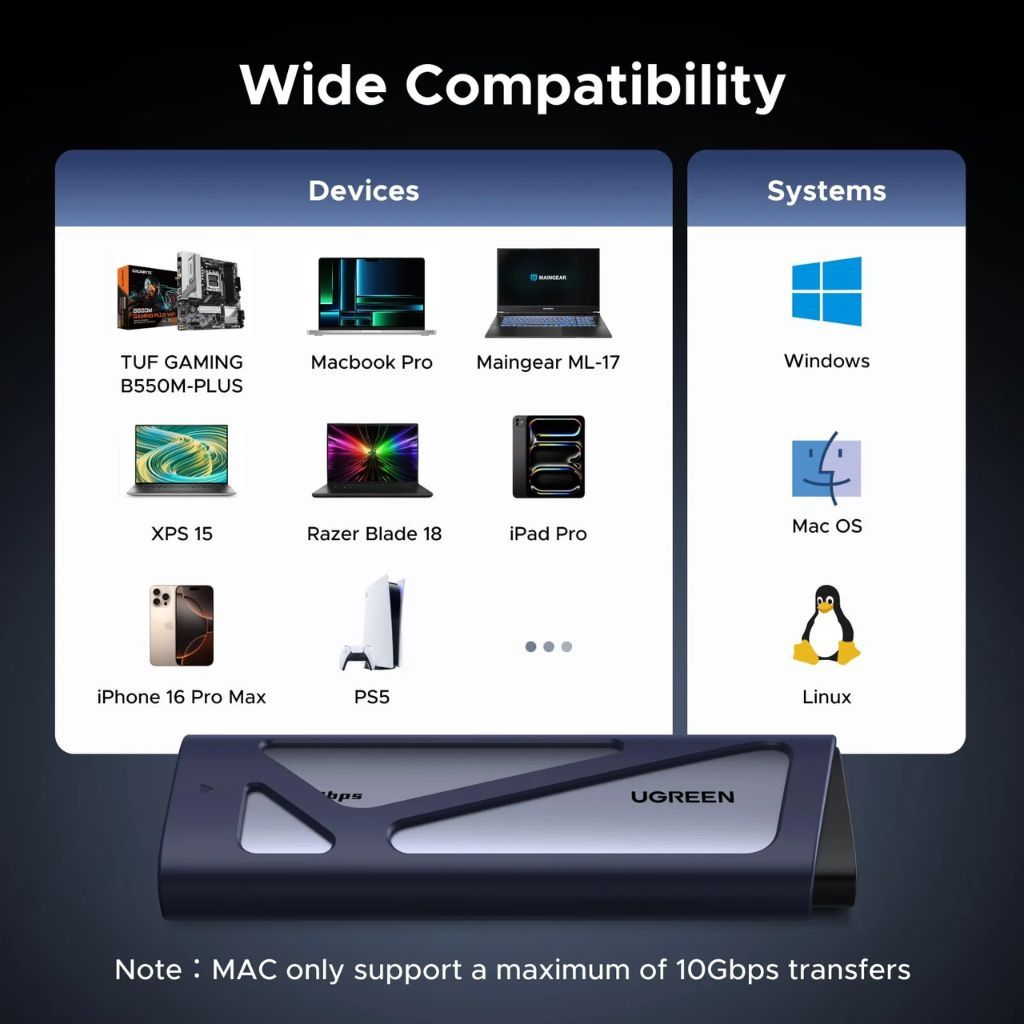

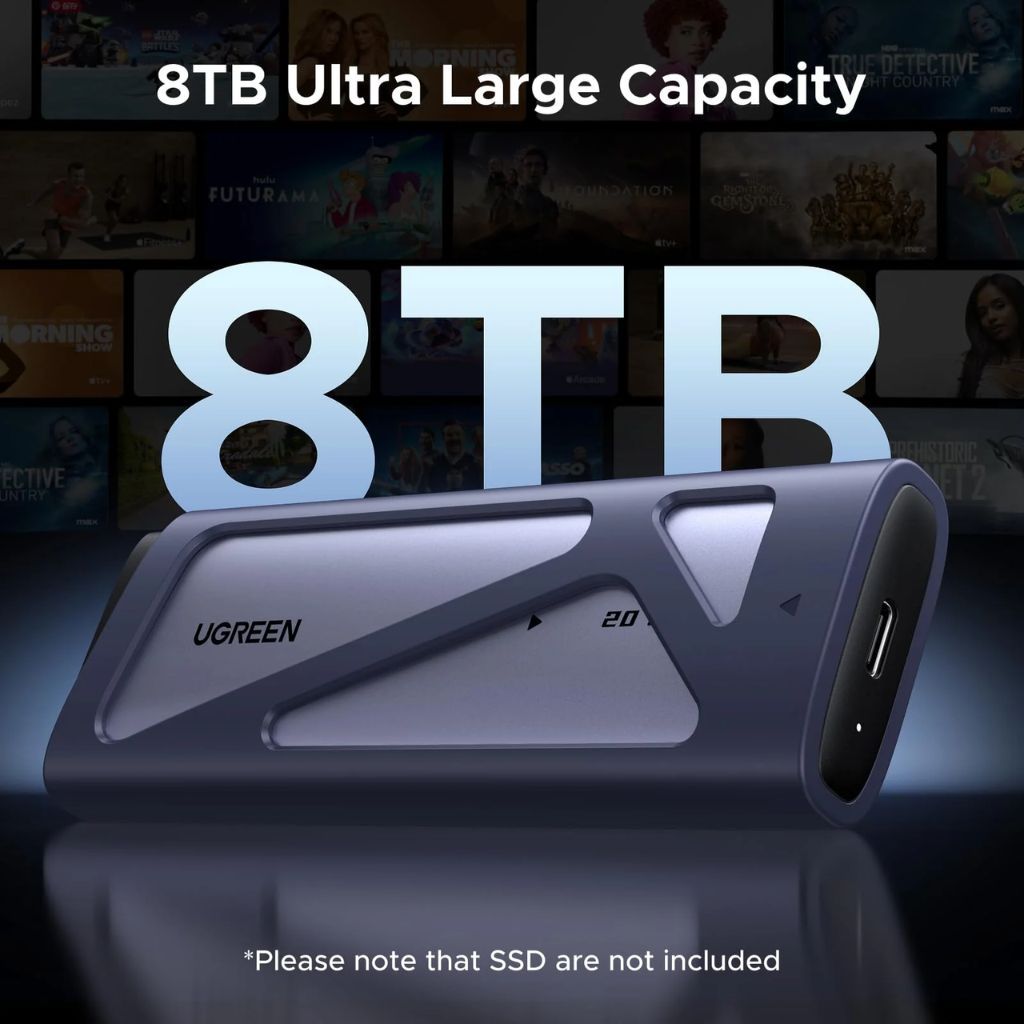

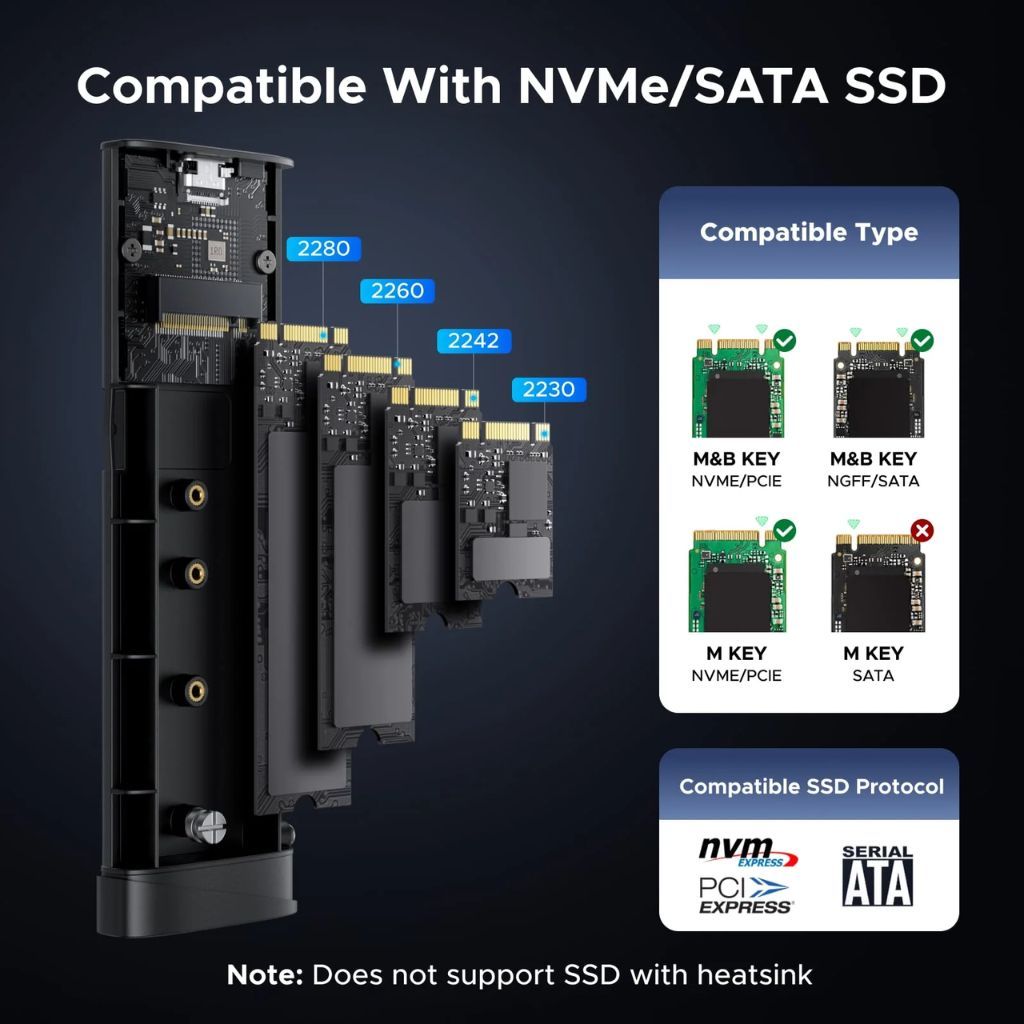

This enclosure supports PCIe NVMe and SATA NGFF M.2 SSDs up to 8TB in 2230, 2242, 2260, and 2280 sizes. It works with Windows, macOS, Linux, Android, and iOS. Note: m-SATA is not supported.

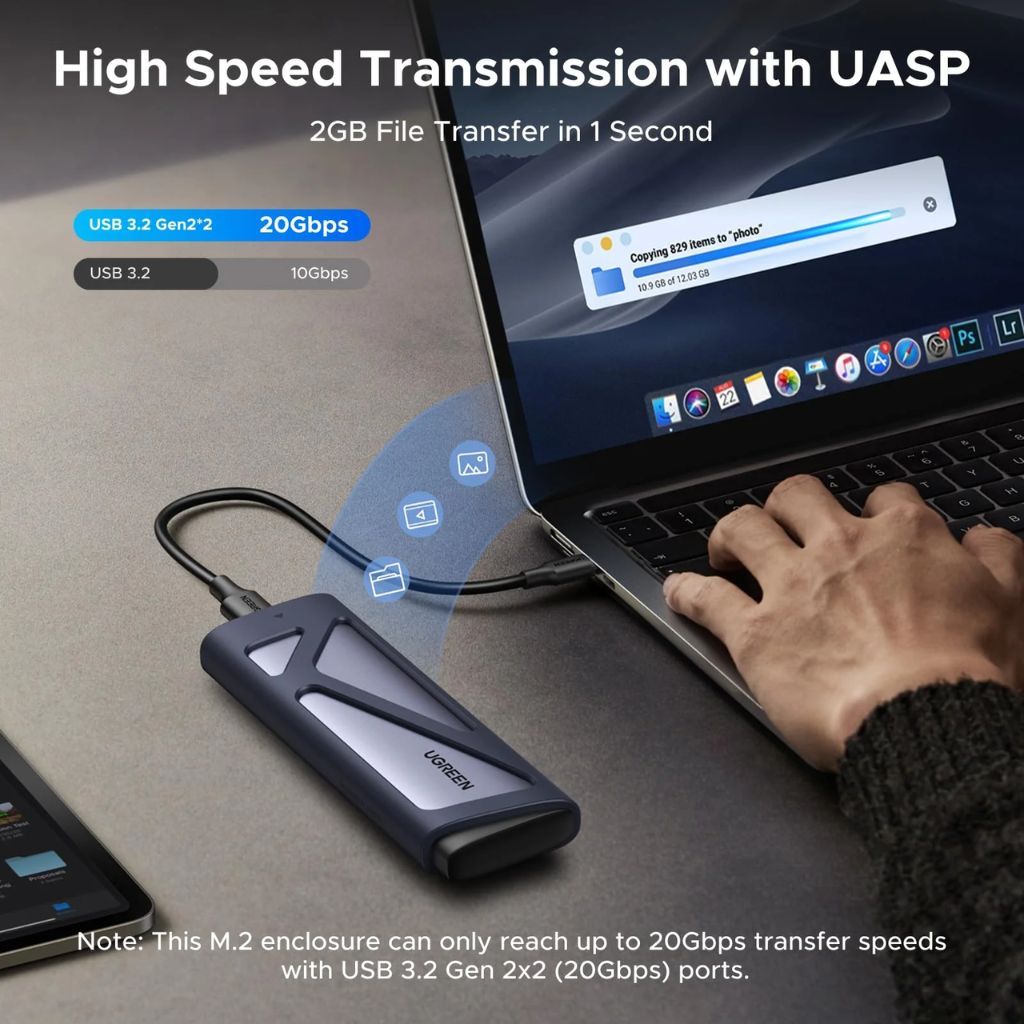

High-Speed 20Gbps Performance
Enjoy transfer speeds up to 20Gbps with USB 3.2 Gen 2×2. Interfaces such as Thunderbolt 4 operate at up to 10Gbps. Ensure your device supports USB 3.2 Gen 2×2 to reach the full 20Gbps rate.

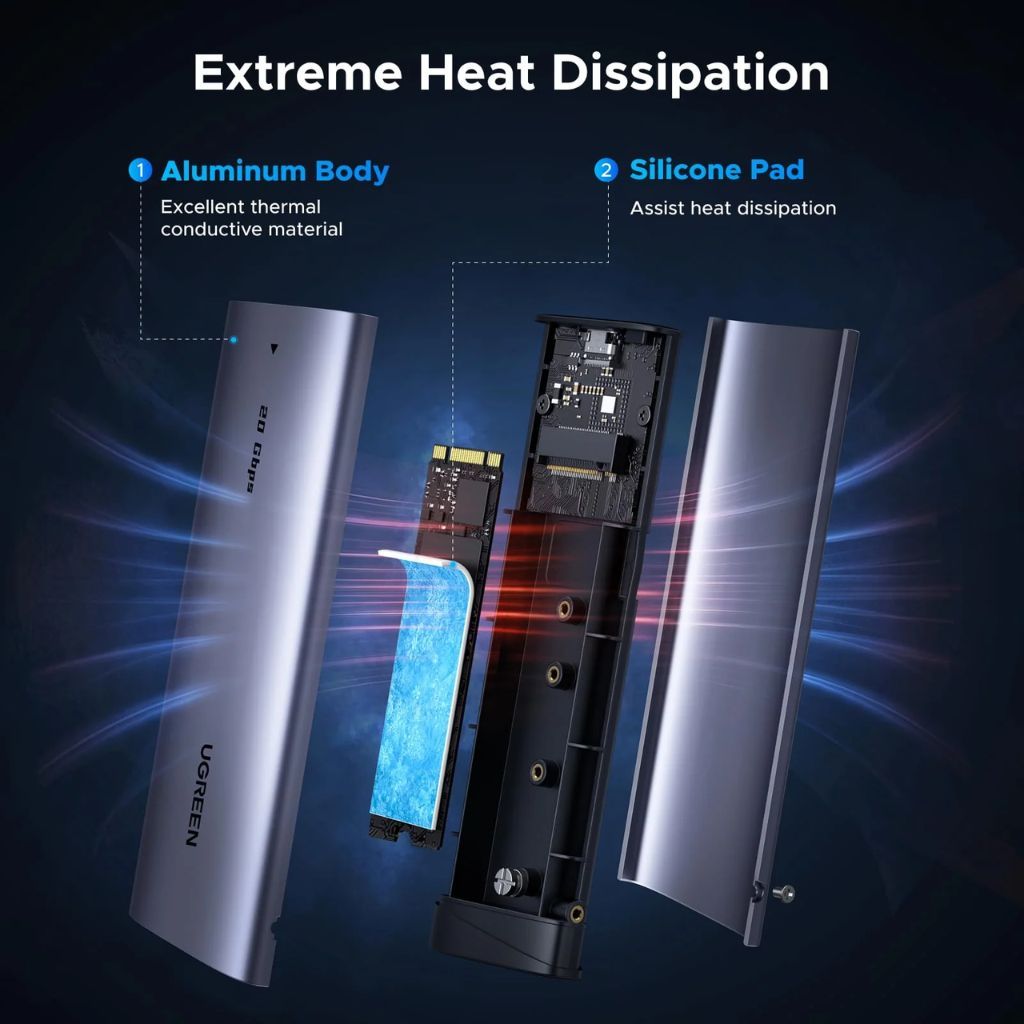

Effective Heat Control
The aluminum casing paired with a thermal pad improves heat dissipation and keeps your SSD running reliably during heavy data transfers.
Safe and Stable Operation

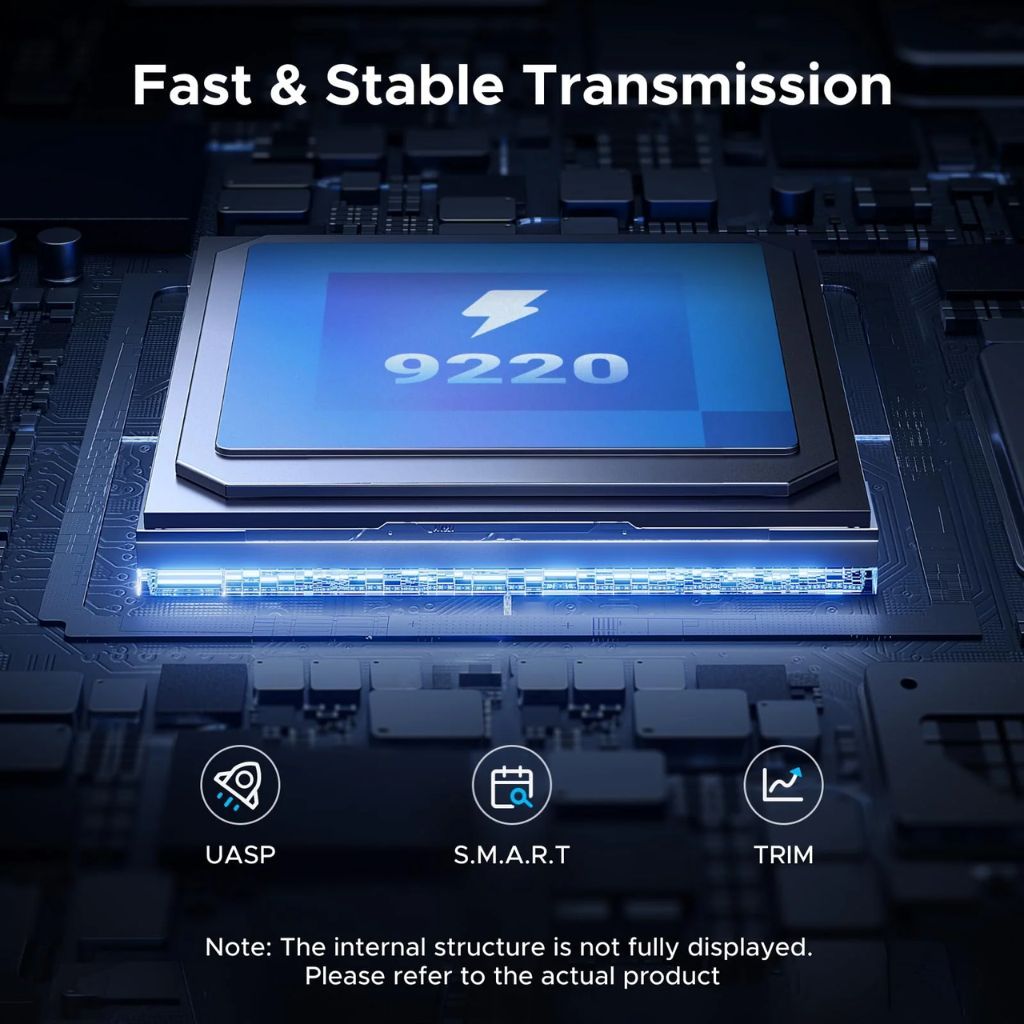

With UASP and TRIM support, plus an RTL9220 controller that includes short-circuit and over-current protection, the enclosure maintains consistent and secure data transfer. The durable aluminum body adds extra physical protection.
Simple Installation
Setup is straightforward thanks to the plug-and-play design. No external power or drivers are neededβjust secure your M.2 SSD with a single screw. Note: SSD not included.
Specification
Model: CM767
SKU: 55150
Input: USB-C
Output: M.2 M-Key
Compatible M.2 Slot: M-Key / B+M Key
Supported Drive: M.2 NVMe / SATA SSD sized 2230/2242/2260/2280
Transfer Rate: Supports transfer rate of up to 20Gbps
Power Source Specification: 5.0Vβ3.0A Max
Compatible Systems: Windows / macOS / Linux
Warranty: 2 Years
