Thermalright TB-750 750W 80 PLUS Bronze Certified ATX Power Supply Unit

Thermalright TB-750 750W 80 PLUS Bronze Certified Full Modular PSU - Image 2

Thermalright TB-750 750W 80 PLUS Bronze Certified Full Modular PSU - Image 3

Thermalright TB-750 750W 80 PLUS Bronze Certified Full Modular PSU - Image 4

Thermalright TB-750 750W 80 PLUS Bronze Certified Full Modular PSU

Name: SweetLoot PC
Price range: $$

RM269.00

Total Power 750W
80 PLUS® Bronze Certified
150mm Length
PCI-e 5.0, ATX 3.0
MB 20+4 Pin x 1, ATX 12V 4+4 Pin x 2, 12VPHWR x 1, PCI-E 6+2 Pin x 3, SATA x 6, MOLEX x 3
120mm Smart Fan Start Stop
Powerful +12V Single Rail Design
OPP / OVP / UVP / SCP
5 Years Warranty

Only 1 left in stock

Store Pickup Available
Pick up your order directly at SweetLoot PC, Bandar Kinrara, Puchong.

Same-Day Delivery
Get your order delivered within Klang Valley via Lalamove.

Courier Delivery
Reliable shipping through your choice of trusted couriers

Pay With Confidence
Secure payment options

SKU: TR-TB750 Category: Power Supply Unit (PSU)

Thermalright TB-750 750W 80 PLUS Bronze – Full Modular Power Supply Unit

ATX 3.0 & PCIe 5.0 Ready

Built to the Intel ATX 3.0 spec with up to 200% power excursion tolerance. A native 12VHPWR (12+4) cable is included for modern GPUs and PCIe Gen5 support.

Stable, Efficient Power

Single +12V rail supplies 62.5A (750W). 80 PLUS Bronze efficiency, two-tube forward DC-DC architecture, and 105°C-rated Japanese electrolytic capacitors deliver steady output. Smart fan start/stop keeps noise down at low load. Multi-line protection safeguards your system. Backed by a 5-year warranty.

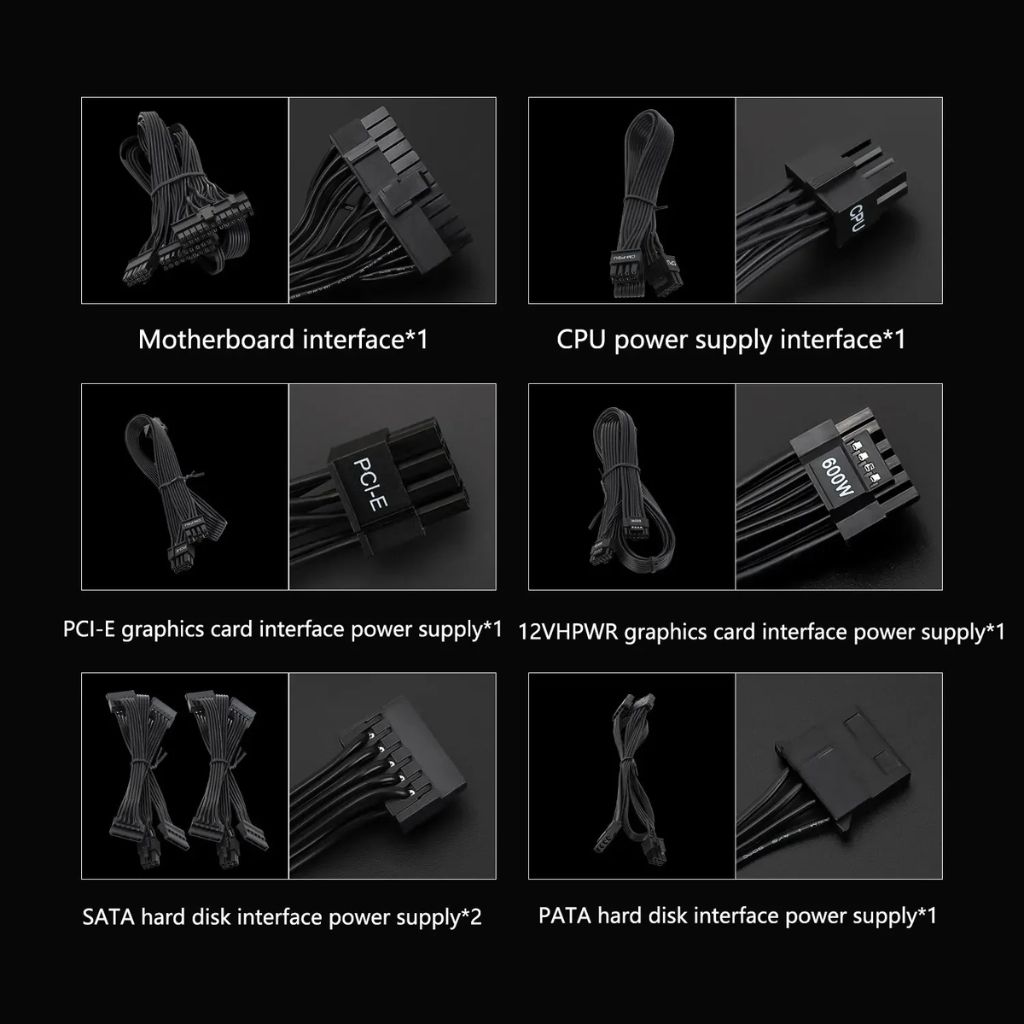

Fully Modular Cabling

Clean routing and airflow with detachable cables:
1× 24-pin (20+4) 550mm; 2× EPS 8-pin (4+4) on one cable 600/150mm;
3× PCIe 8-pin (6+2): one dual-head 500/150mm + one single 500mm;
1× 12VHPWR (12+4) 600mm; 6× SATA on two cables 400/150/150mm; 3× 4-pin peripheral 400/150/150mm.

Electrical Specs

AC input: 100–240VAC, 10A, 50–60Hz. Rails: +3.3V 20A, +5V 20A (100W combined), +12V 62.5A (750W), −12V 0.3A (3.6W), +5VSB 3A (15W).

A compact, quiet, and dependable PSU for modern gaming and creator PCs.

Specifications

Dimension: L150 mm x W140 mm x H86 mm±1 mm
Wattage：750W
Efficiency：80 PLUS Bronze
Modular：Full-Modular
Input Voltage：100-240Vac
Input Current：10A
Input Frequency：50-60Hz
Fan Size：120 mm
Operating Temperature：0-40°C
MTBF：>100K Hours
Warranty：5 Years
